- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com/uk
- Brand Name
- StarTech.com
- Marketing Information

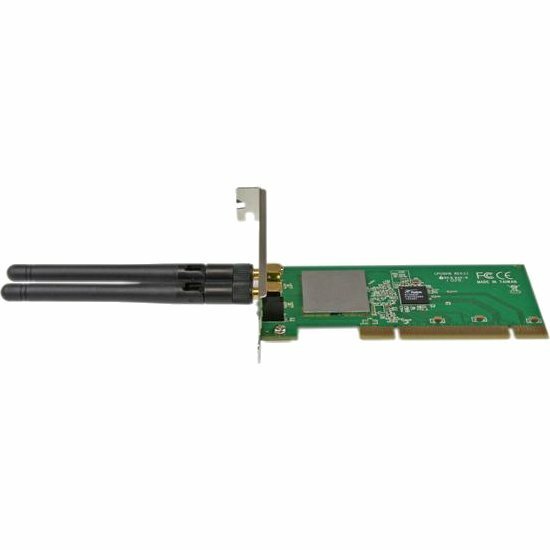

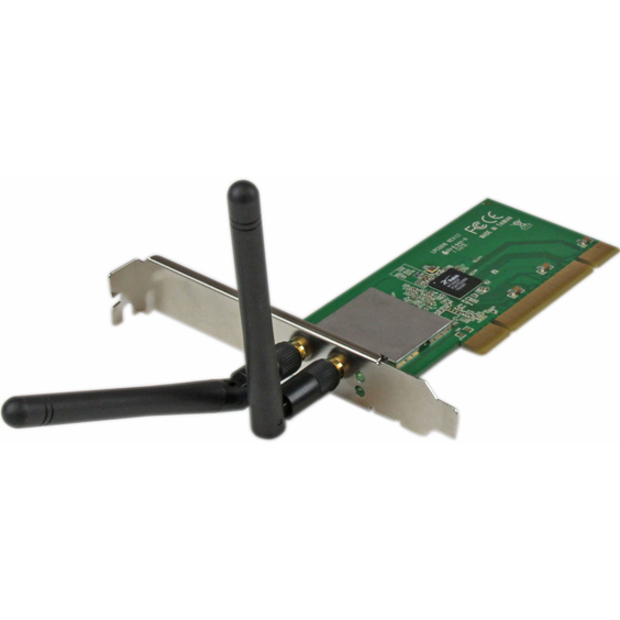

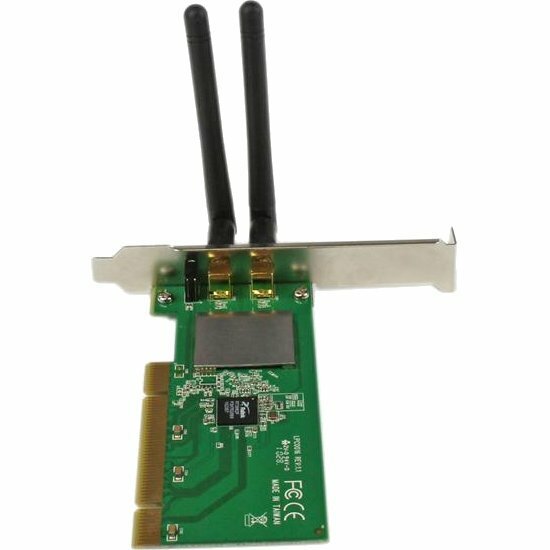

Add high speed Wireless-N connectivity to a desktop PC through PCI. The PCI300WN2X2 Wireless-N PCI Card adds high speed 802.11n network connectivity to almost any PCI-enabled desktop/workstation PC. Using a 2T2R (2 Transmitter/2 Receiver) design over the 2.4GHz frequency, the card supports 300Mbps data bandwidth over an 802.11n network, while providing optimal signal reception and range - the ideal WiFi card for Desktop PCs.
Backward compatible with 802.11b/g networks (11/54Mbps), this versatile WiFi N adapter offers a versatile wireless networking solution with support for standard and advanced security options such as WEP, WPA and WPA2, along with wireless Quality of Service (QoS) support and quick and easy setup through WPS.
This easy-to-install wireless PCI NIC also includes a low-profile adapter, which enables it to be installed as a half-height wireless PCI card that''s suitable for Small Form Factor computers.Backed by StarTech.com''s 2-year warranty, the PCI300WN2X2 PCI Wireless N adapter also includes free lifetime technical support, ensuring an excellent upgrade or first-time setup option.
More from the Manufacturer
- Packaged Quantity
- 1
- Product Type
- Wi-Fi Adapter
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Wi-Fi Generation
- Wi-Fi 4
- Wireless LAN Standard
- IEEE 802.11n
- ISM Band
- Yes
- UNII Band
- No
- ISM Minimum Frequency
- 2.40 GHz
- ISM Maximum Frequency
- 2.48 GHz
- Number of Antennas
- 2
- Antenna Gain (Isotropic)
- 2 dBi
- Antenna Connector
- RP-SMA Connector
- Wireless Transmission Speed
- 300 Mbit/s
- Wireless Security
- WEP
- WPA
- WPA2
- WPS
- TKIP/AES
- Features
- Quality of Service (QoS)
- Interfaces/Ports
- Host Interface
- PCI
- Physical Characteristics
- Form Factor
- Internal
- Height
- 5.3 cm
- Width
- 13 cm
- Thickness
- 17.8 mm
- Weight (Approximate)
- 51 g
- Miscellaneous
- Package Contents
- PCI Wireless N Adapter
- 1 x Low Profile Bracket
- 2 x Antenna
- 1 x Driver CD
- 1 x Instruction Manual
- System Requirements
Operating Systems:
- Windows XP (64-bit)
- Windows Server 2003 (32/64-bit)
- Windows Server 2008 R2
- Windows Vista (32/64-bit)
- Windows 7 (32/64-bit)
- Windows 8 (32/64-bit)
- Windows 10
- Linux 2.6.32 or Later
- Device Supported
- Desktop Computer
- Certifications & Standards
- CE
- FCC
- IEEE 802.11b
- IEEE 802.11n
- IEEE 802.11g
- Platform Supported
- PC
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin
- Taiwan
