Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.

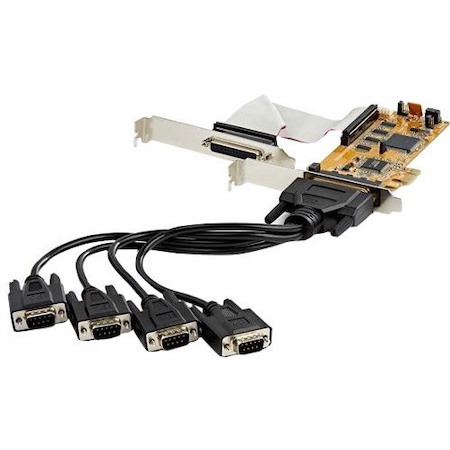

Connect your Peripherals with 8 Serial PortsThe PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors.

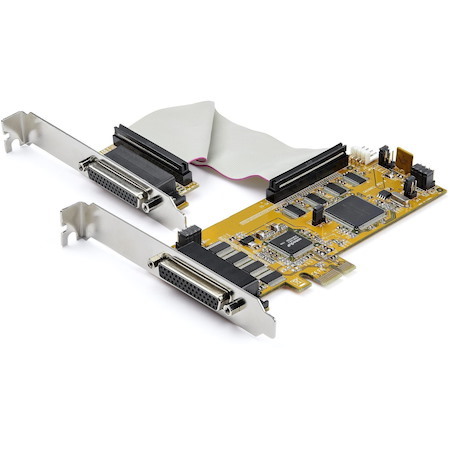

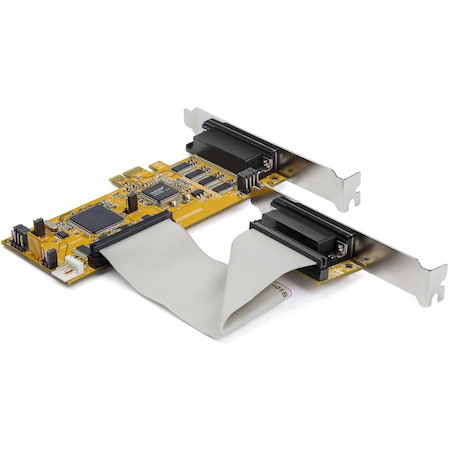

Versatile UseThe low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.
Maximum CompatibilityWith broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments.
PEX8S1050LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com/uk
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- Multiport Serial Adapter
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Host Interface
- PCI Express x1
- Maximum Data Transfer Rate
- 921.40 kbit/s
- Platform Supported
- Linux
- PC
- Interfaces/Ports
- Number of Serial Ports
- 8
- Ports Expandability
- 8 x DB-9 - Serial, Via Cable
- Physical Characteristics
- Color Family
- Yellow
- Product Color
- Yellow
- Form Factor
- Plug-in Card
- Height
- 61 mm
- Width
- 22.9 mm
- Weight (Approximate)
- 116 g
- Miscellaneous
- Package Contents
- 8-Port PCI Express Serial Card with 16C1050 UART
- 2 x 1 ft [30 cm] DB44 to 4-Port DB9 Break-out Cables
- 2 x Low Profile Brackets (Installed)
- 2 x Full Profile Brackets
- 1 x Quick-Start Guide
- 8 x Optional DB9 Connector Hex Nut Pairs
- TAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
