- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com
- Brand Name
- Mercusys
- Product Type
- Wireless Range Extender
WiFi 6 Takes Your Network to the Next Level

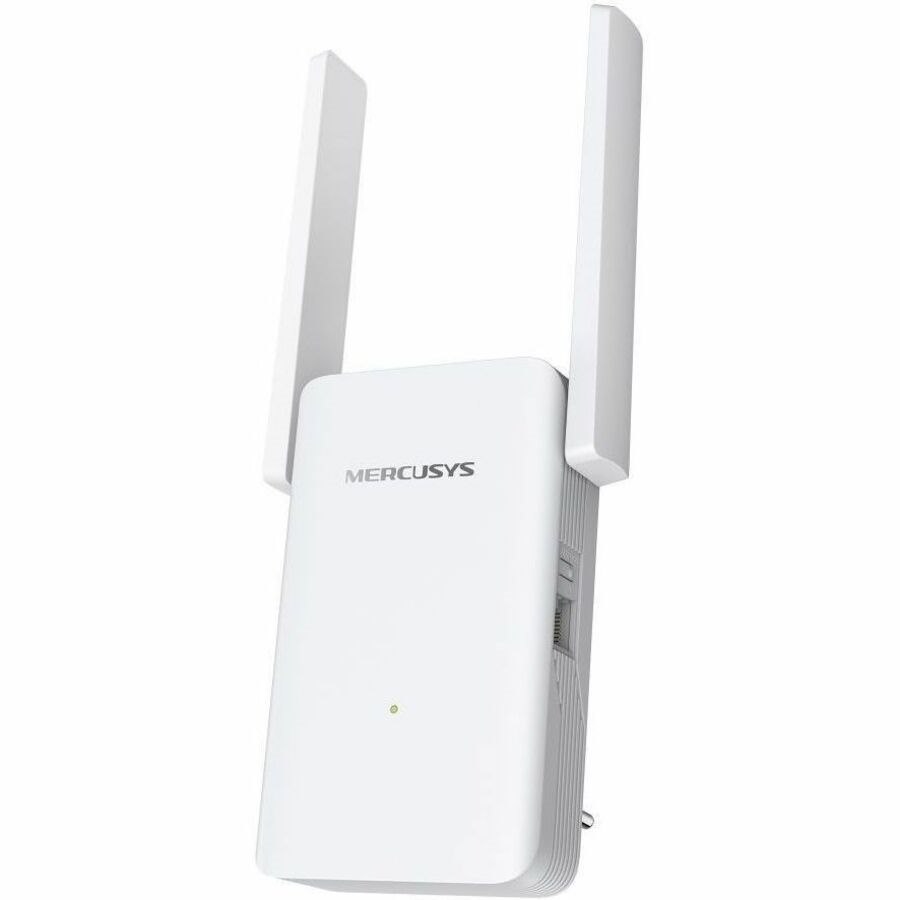

Armed with Wi-Fi 6 , ME80X improves virtually every aspect of your network: speed, efficiency, and capacity.
Extend WiFi to Where You Need It Most
Extend your router's coverage. This AX3000 range extender, with two adjustable high-gain antennas, boosts WiFi to hard-to-reach areas and is compatible with older WiFi standards (11b/g/n/a/ac) and all connected devices.
Cover Your Whole Home with EasyMesh
ME80X is compatible with EasyMesh, enabling you to set up a whole home mesh network with one WiFi name and password with any other APs that support EasyMesh from multiple vendors. Enjoy flexible, scalable, and seamless mesh WiFi throughout your home!
- Flexible WiFi Range Expansion
- Works with Different Vendors
- Seamless WiFi Connections
Enjoy Seamless WiFi Wherever You Walk | Effortless One-Touch Setup
Press the WPS button on your router and the WPS button on your extender to expand your WiFi coverage in seconds.
Built-In Access Point Mode
ME80X is more than a WiFi range extender. Connect it to your wired internet via Ethernet to transform it into a dual-band WiFi access point.
Control at Your Fingertips
Set up and manage your WiFi through the MERCUSYS app from your smartphone (Android, iOS).
- Technical Information
- Wireless LAN Standard
- IEEE 802.11 a/b/g/n/ac/ax
- Network Band
- Dual Band
- Frequency Band
- 2.40 GHz
- 5 GHz
- ISM Band
- Yes
- UNII Band
- Yes
- ISM Maximum Frequency
- 2.40 GHz
- UNII Maximum Frequency
- 5 GHz
- Total Number of Antennas
- 2
- Number of External Antennas
- 2
- Wireless Transmission Speed
- 2.93 Gbit/s
- Data Encryption
- Yes
- Encryption Standard
- WEP
- WPA
- WPA2
- WPA3-PSK
- WPS
- Interfaces/Ports
- Ethernet Technology
- Gigabit Ethernet
- Number of Network (RJ-45) Ports
- 1
- Network & Communication
- Wi-Fi Generation
- Wi-Fi 6
- Wireless Performance
- AX3000
- Power Description
- Power Consumption
- 13 W
- Physical Characteristics
- Antenna Form Factor
- External
- Height
- 68.4 mm
- Width
- 138.6 mm
- Depth
- 100.3 mm
- Miscellaneous
- Package Contents
- ME80X Wireless Range Extender
- Quick Installation Guide
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
