- General Information
- Manufacturer
- TRENDnet
- Manufacturer Website Address
- http://www.trendnet.com
- Brand Name
- TRENDnet
- Product Type
- Wireless Access Point

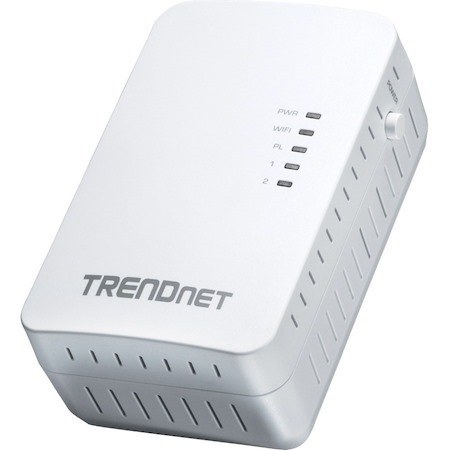

TRENDnet's Powerline 500 AV Wireless Access Point, model TPL-410AP, uses an electrical outlet to create or expand a wireless network. Two Powerline adapters are needed to start a network. Connect one adapter to a router and plug in the TPL-410AP on your electrical system to create or expand a high performance wireless network.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Wireless LAN Standard
- IEEE 802.11n
- ISM Band
- Yes
- UNII Band
- No
- ISM Maximum Frequency
- 2.40 GHz
- Total Number of Antennas
- 2
- Number of Internal Antennas
- 2
- Antenna Gain (Isotropic)
- 3 dBi
- Outdoor Antenna Range
- 300 m
- Wireless Transmission Speed
- 300 Mbit/s
- Wireless Security
- WPA2
- 128-bit AES
- WPS
- Powerline Transmission Speed
- 62.50 MB/s
- Powerline Transmission Standard
- HomePlug AV
- Features
- LED Indicator
- MIMO Technology
- Interfaces/Ports
- Ethernet Technology
- Ethernet
- Fast Ethernet
- Number of Network (RJ-45) Ports
- 2
- Network (RJ-11)
- No
- PoE (RJ-45) Port
- No
- VGA
- No
- HDMI
- No
- Audio Line Out
- No
- Serial Port
- No
- USB
- No
- Powerline
- No
- Management Port
- No
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Physical Characteristics
- Form Factor
- Wall Mountable
- Height
- 100 mm
- Width
- 77 mm
- Depth
- 65 mm
- Weight (Approximate)
- 164 g
- Miscellaneous
- Package Contents
- Powerline 500 AV Wireless Access Point
- Multi-Language Quick Installation Guide
- CD-ROM (Utility & User's Guide)
- Network cable (1.8 m/6 ft.)
- System Requirements
- Operating Systems:
- Windows 8.1
- Windows 8
- Windows 7
- Windows Vista
- Windows XP
- Certifications & Standards
- CE
- FCC
- 802.3
- 802.3u
- 802.3x
- 802.3az
- 802.11b
- 802.11g
- 802.11n
- 1901
- Environmentally Friendly
- Yes
