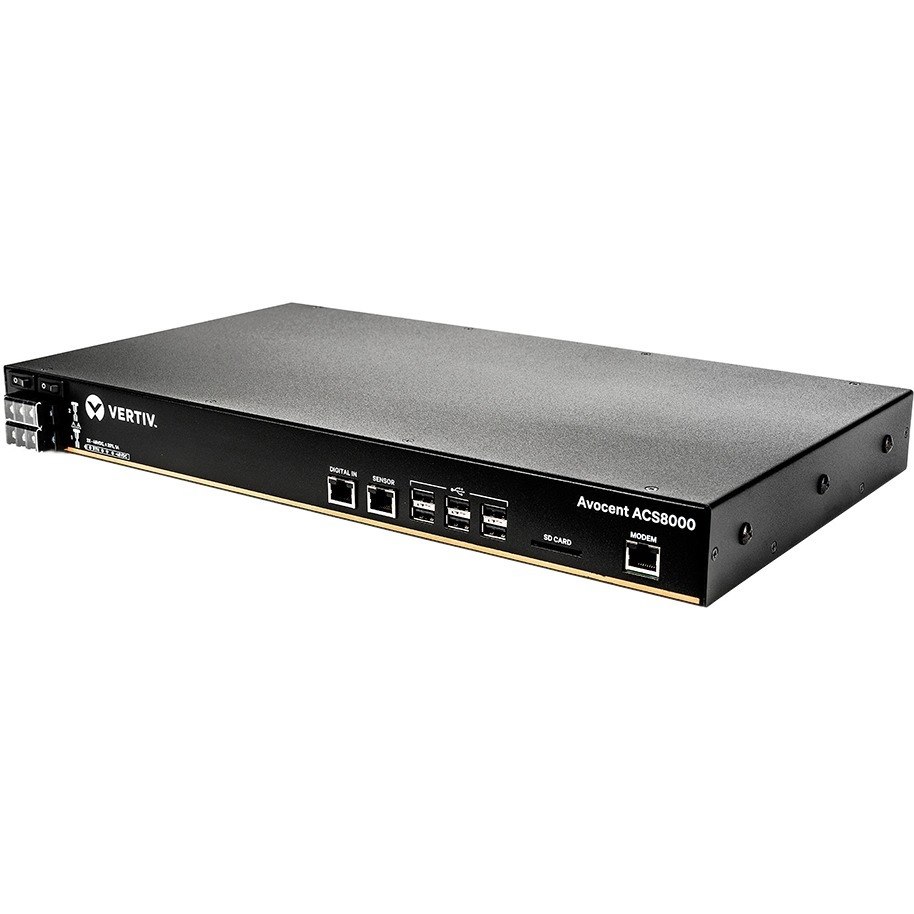

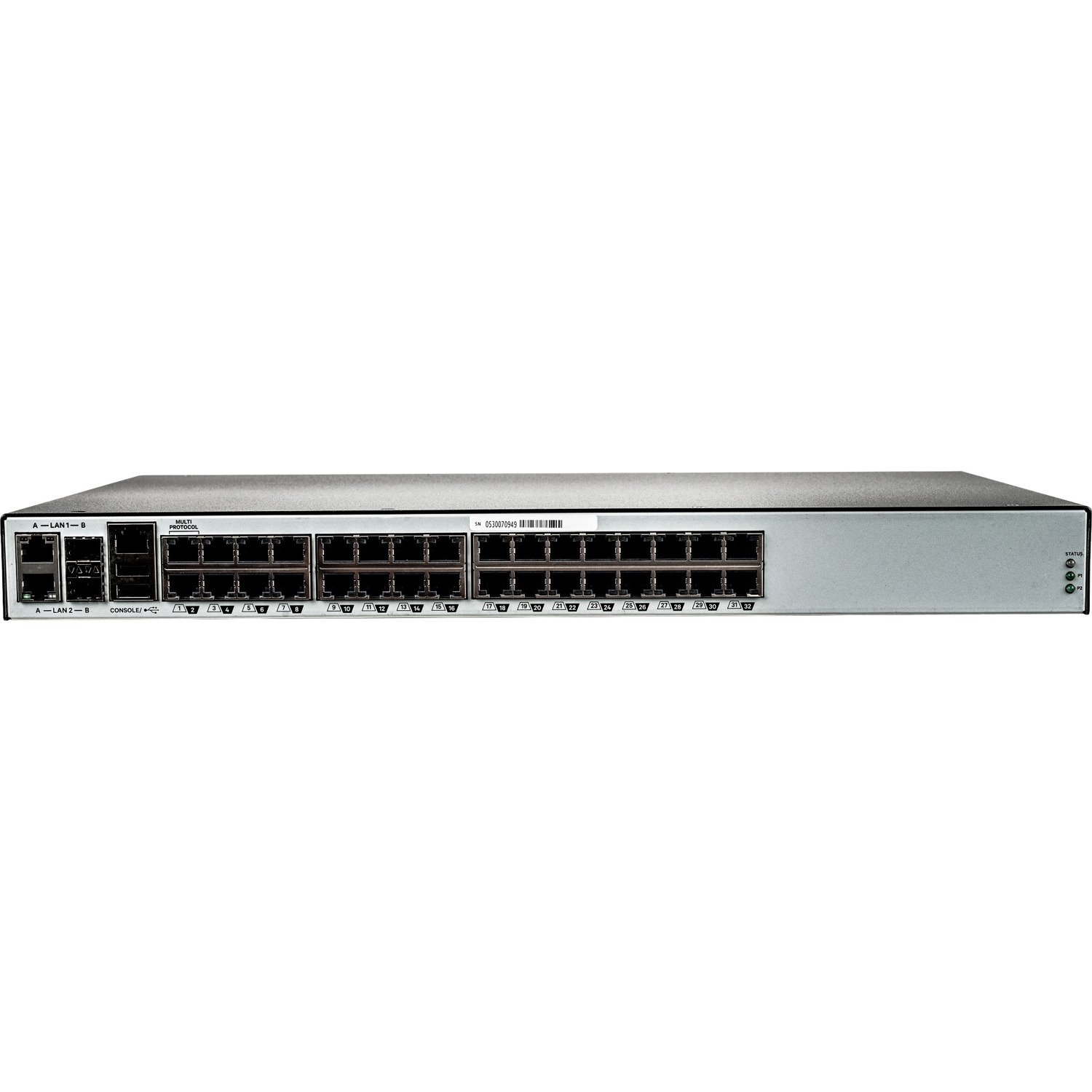

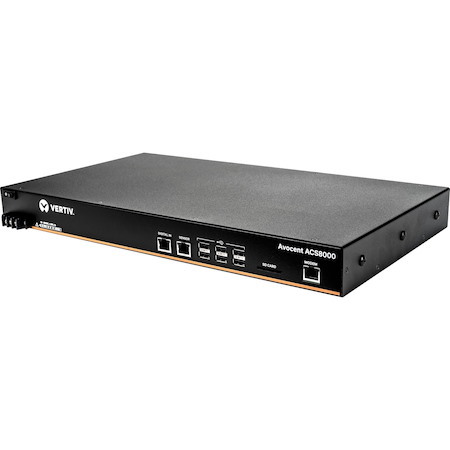

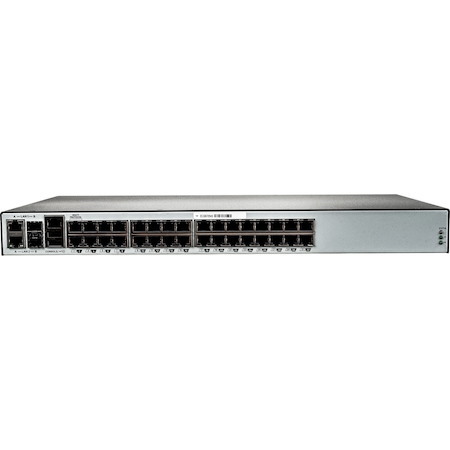

The Avocent® ACS 8000 advanced console server series continues the long running success story with a new, ground-up platform of innovation, integrating important new connectivity features such as gigabit fiber, USB and sensors. IT professionals and network operations center (NOC) personnel can now harness these new capabilities to further enable them to perform secure, remote data center management and out-of-band management of IT assets from anywhere in the world. Featuring a dual-core ARM processor architecture with expanded memory capabilities, the updated Linux operating system and DSView™ management software, provides the Avocent® ACS 8000 optimal performance, security, reliability for a complete out-of-band management solution.
High-Performance Design and Advanced Features
-ACS 8000 32-port advanced console terminal management server with dual DC power supply, V.92 analog modem offers the performance and reliability necessary to efficiently access and manage IT assets
-Dual 1 gigabit ethernet port for network connectivity & failover and secure inband management for daily networking management
-Expanding connectivity options of 2 Fiber ports (1 gigabit SFP), 8 USB 2.0 ports, 2 RS-485/RS-422 serial ports
-Direct Interface with most common UPS and PDU brands (Vertiv, APC, Eaton, ServerTech, Raritan) and Liebert GXT4 UPS
-Powerful dual-core ARM processor and 16GB of flash memory to support automation scripting
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertivco.com
- Brand Name
- AVOCENT
- Product Line
- ACS
- Product Series
- 8000
- Packaged Quantity
- 1
- Product Type
- Device Server
- Technical Information
- Device Type
- Console Server
- Processor & Chipset
- Processor Manufacturer
- ARM
- Processor Speed
- 667 MHz
- Memory
- Standard Memory
- 1 GB
- Memory Technology
- DDR3 SDRAM
- Maximum Memory Supported
- 1 GB
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Wireless Specifications
- Wireless LAN
- No
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Standard
- 10/100/1000Base-T
- 1000Base-X
- Interfaces/Ports
- Network (RJ-45)
- Yes
- USB
- Yes
- Serial Port
- Yes
- Parallel Port
- No
- Centronics Port
- No
- PoE (RJ-45) Port
- No
- Number of Network (RJ-45) Ports
- 2
- Number of USB Ports
- 8
- Number of Serial Ports
- 32
- Environmental Conditions
- Minimum Operating Temperature
- 10°C
- Maximum Operating Temperature
- 60°C
- Power Description
- Input Voltage
- 100 V AC
- 240 V AC
- Input Voltage Range
- 100-240 VAC
- Power Consumption
- 33 W
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Product Color
- Black
- Product Material
- Steel
- Form Factor
- Rack-mountable
- Height
- 44.5 mm
- Width
- 438.2 mm
- Depth
- 241.3 mm
- Weight (Approximate)
- 3.40 kg
- Miscellaneous
- Certifications & Standards
- FCC Class A
- CE Class A (EU)
- ICES-003 (Canada)
- VCCI (Japan)
- RCM (Australia)
- Customs Union (CU)
- KCC (Korea)
- UL (USA)
- cUL (Canada)
- EN-60950 (EU)
- CB
- Customs Union (CU)
