- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertivco.com
- Brand Name
- Vertiv Geist
- Product Series
- rPDU
- Product Type
- PDU
Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.
Benefits
- Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
- Fault-Tolerant
- Every unit is 100% tested for reliability and functionality. Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
- Warranty
- Limited Warranty
- 5 Year
- Additional Warranty Information
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
- Technical Information
- PDU Type
- Monitored
- Plug/Connector Type
- IEC 60309 1P + N + E (IP44)
- Plug/Connector Detail
- 1 x IEC 60309 1P + N + E (IP44)
- Receptacle Type
- U-Lock IEC 60320 C13
- U-Lock IEC 60320 C19
- Receptacle Detail
- 30 x U-Lock IEC 60320 C13
- 6 x U-Lock IEC 60320 C19
- Protection Type
- Overcurrent Protection
- Single Pole
- Features
- LED Display
- Touch Screen Display
- Load Capacity (Watt)
- 7.30 kW
- Power Description
- Input Voltage
- 230 V AC
- Input Voltage Range
- 200 V AC - 240 V AC
- Output Voltage
- 208 V AC
- Power Rating (Watt)
- 7.30 kW
- Input Current
- 32 A
- Input Frequency
- 60 Hz
- Circuit Breaker
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black Powder Coat
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Rack Height
- 0U
- Cord Length
- 3.05 m
- Width
- 50.8 mm
- Depth
- 66 mm
- Length
- 1.8 m
- Environmental Conditions
- Maximum Operating Temperature
- 60°C
- Miscellaneous
- Package Contents

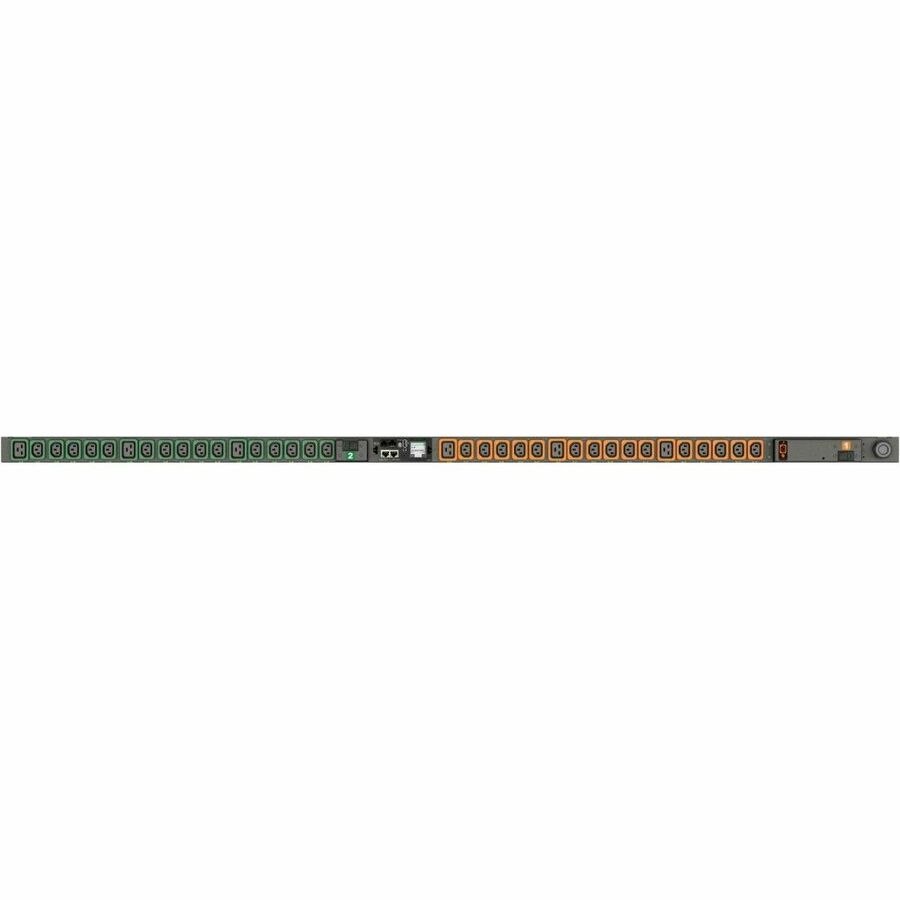

- rPDU MGR5MGW1-36PT63-3PS6B2A10-S 36-Outlets PDU
- Vertical Mounting Bracket Kit
- Application/Usage
- IT Equipment
- Certifications & Standards
- CE Marked
- UKCA Marked
- IEC 62368-1
- EN 55032
- EN 55035
- C? Mark
- RCM Mark
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- China Restriction of Hazardous Substances (China RoHS)
