- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS
- Packaged Quantity
- 1 Each
- Product Type
- Double Conversion Online UPS

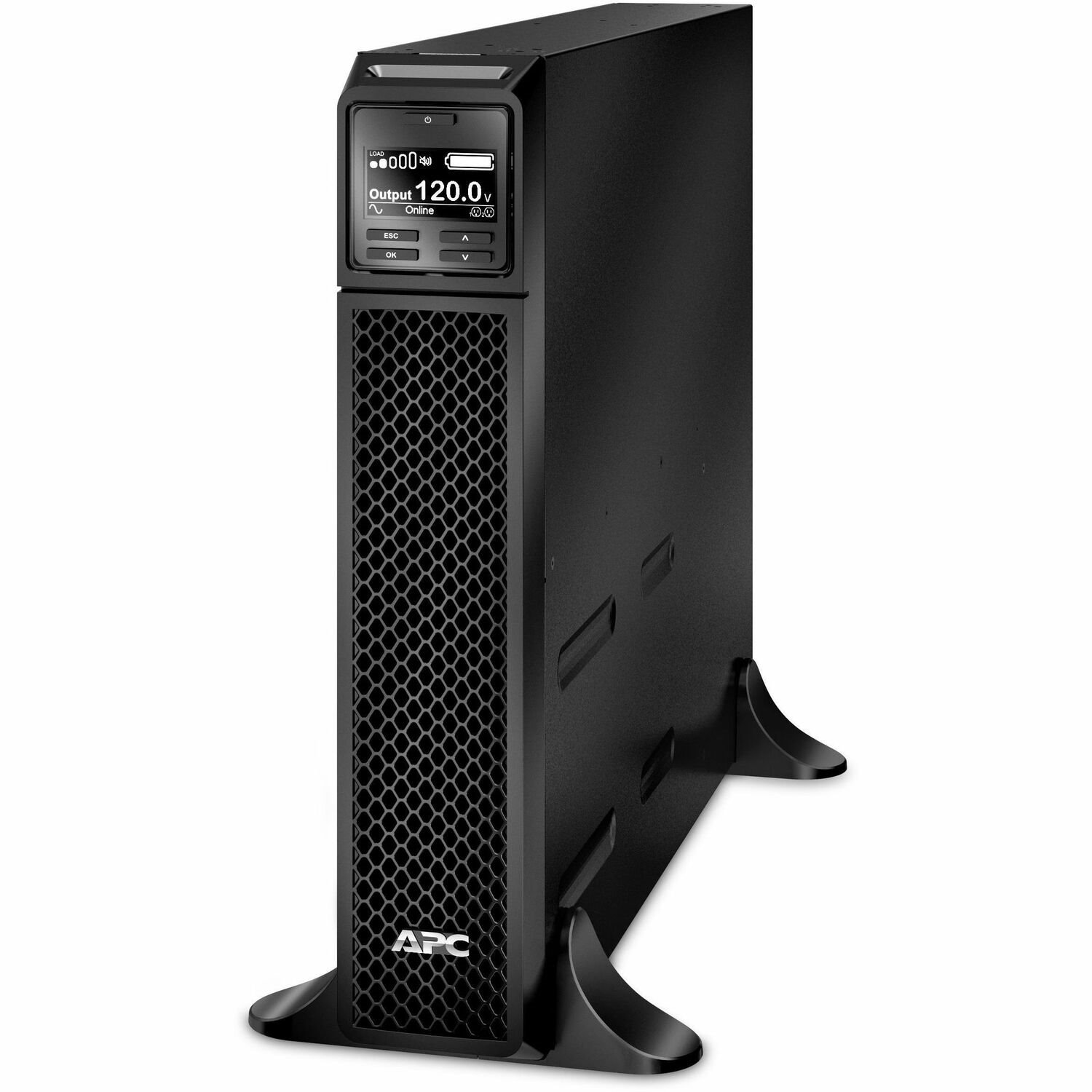

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6x NEMA 5-20R and 1x NEMA L5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately.
- Technical Information
- Receptacle Type
- NEMA 5-20P
- Receptacle Detail
- 1 x NEMA L5-20R
- 6 x NEMA 5-20R
- Number of Battery & Surge Outlets
- 7
- Cord Length
- 1.80 m
- Phase
- Single Phase
- Power Description
- Load Capacity (VA)
- 2.20 kVA
- Load Capacity (Watt)
- 1.80 kW
- Input Voltage
- 120 V AC
- Output Voltage
- 120 V AC
- Waveform Type
- Sine Wave
- Battery Information
- Battery Chemistry
- Lead Acid
- Typical Battery Recharge Time
- 3 Hour
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 85.1 mm
- Width
- 432.1 mm
- Depth
- 584 mm
- Rack Height
- 2U
- Form Factor
- Tower
- Mounting Preference
- Lower
- Mounting Location
- Front
- Weight (Approximate)
- 25 kg
- Miscellaneous
- For Country/Region
- United States
- Energy Star
- Yes
- Optimized Energy Efficiency
- Yes
- Product Take Back Program
- Yes
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT2200XLA_ROHS_DECLARATION&p_FileName=SRT2200XLAKIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458563184&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458563184&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN
- Energy Star URL
- https://www.energystar.gov/products/uninterruptible_power_supplies
- REACH free of SVHC
- No
- WEEE Statement
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
