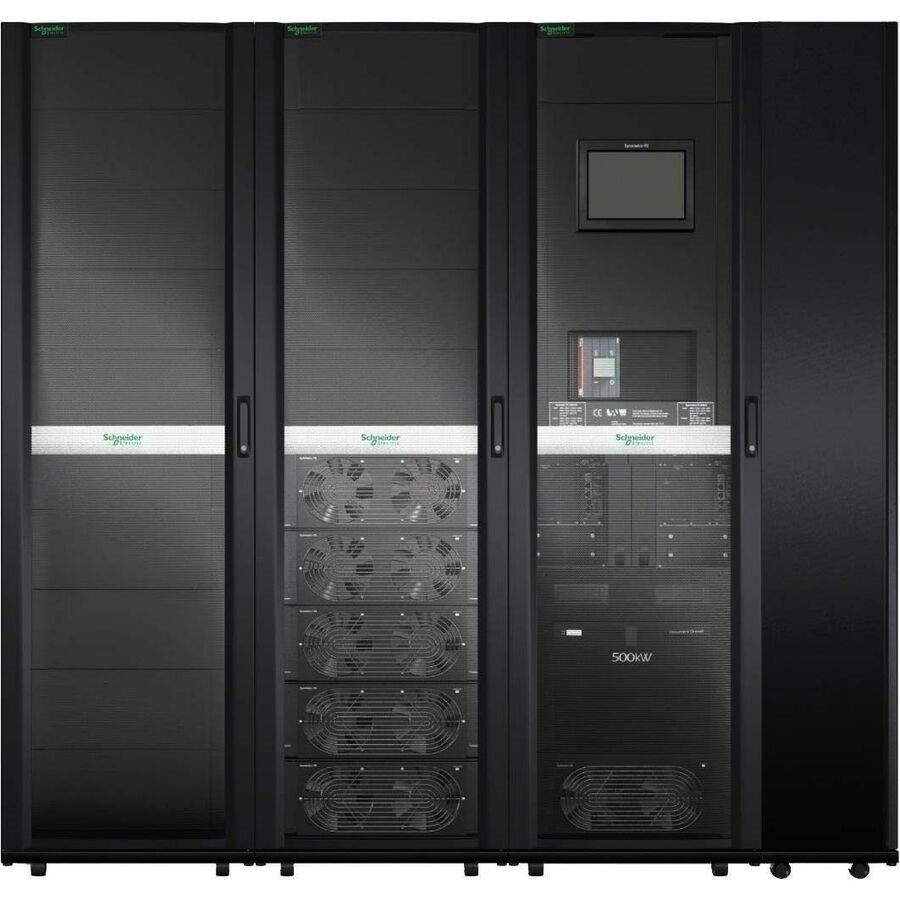

A high-performance, 3-phase, modular, scalable, power protection solution with industry-leading efficiency, capacity, and performance for medium to large data centers and mission critical environments.
- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Symmetra PX
- Packaged Quantity
- 1 / Pack
- Product Type
- Double Conversion Online UPS
- Technical Information
- Receptacle Type
- Hard Wire 4-wire (3P + E)
- Receptacle Detail
- 1 x Hard Wire 4-wire (3P + E)
- Transfer Time
- 2 ms
- Phase
- Three Phase
- Application/Usage
- Data Center
- Efficiency
- 96%
- Power Description
- Load Capacity (VA)
- 125 kVA
- Load Capacity (Watt)
- 125 kW
- Input Voltage
- 400 V AC
- 415 V AC
- 480 V AC
- Input Voltage Range
- 408 V AC - 552 V AC
- Output Voltage
- 380 V AC
- 400 V AC
- 415 V AC
- 480 V AC
- Input Frequency
- 40 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Waveform Type
- Sine Wave
- Input Power Factor
- 0.99
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- Network Management Card 2
- Interfaces/Ports
- USB
- No
- Environmental Conditions
- Maximum Operating Temperature
- 40°C
- Maximum Operating Elevation
- 1.02 km
- Maximum Storage Elevation
- 15.24 km
- Storage Relative Humidity
- 0% - 95%
- Sound Emission (A-Weighted)
- 54 dB(A)
- Thermal Dissipation
- 19427 BTU/h
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Modular
- Height
- 1991 mm
- Width
- 2200 mm
- Depth
- 1070 mm
- Weight (Approximate)
- 1499 kg
