- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertivco.com
- Brand Name
- VERTIV
- Product Series
- PSA6
- Product Type
- Line-interactive UPS

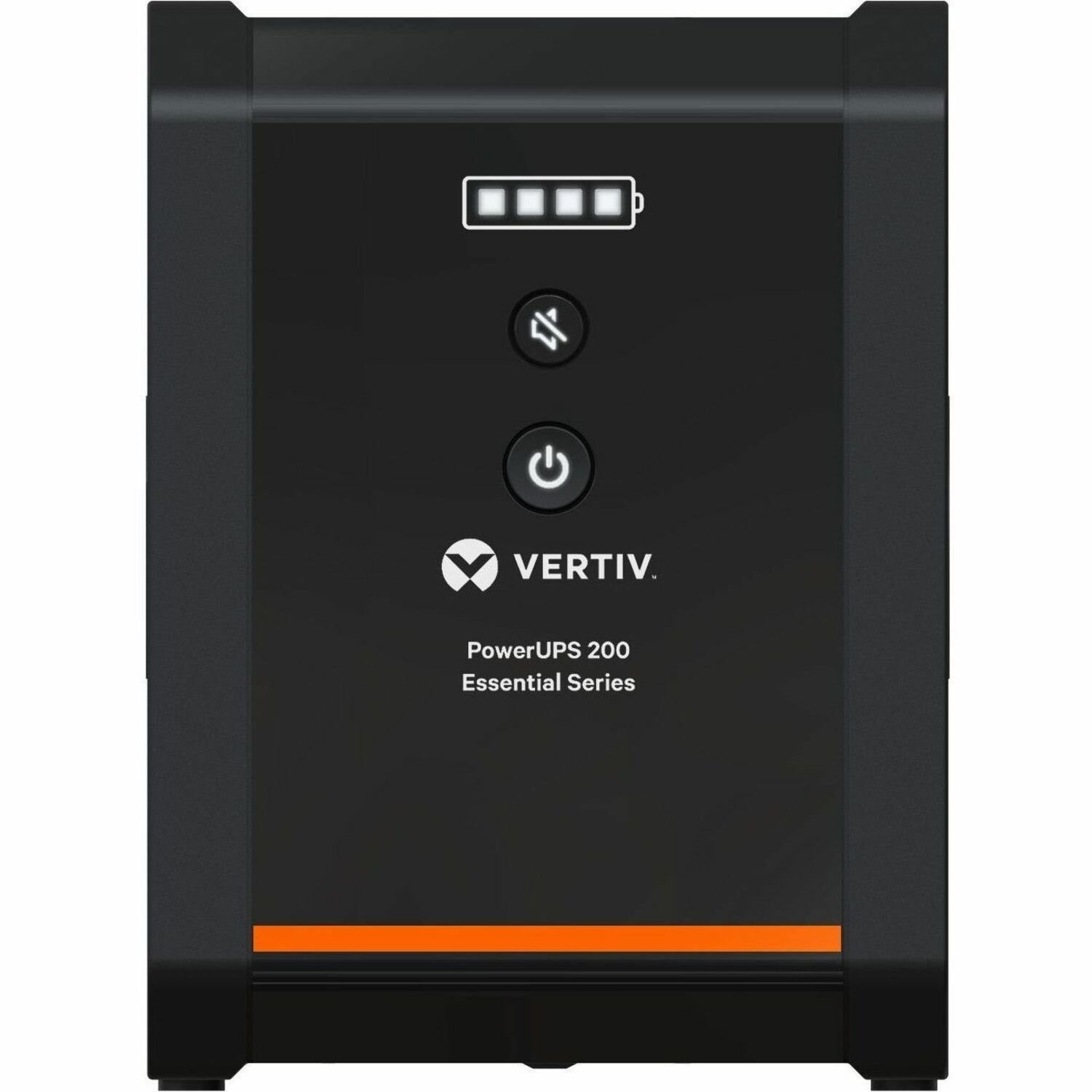

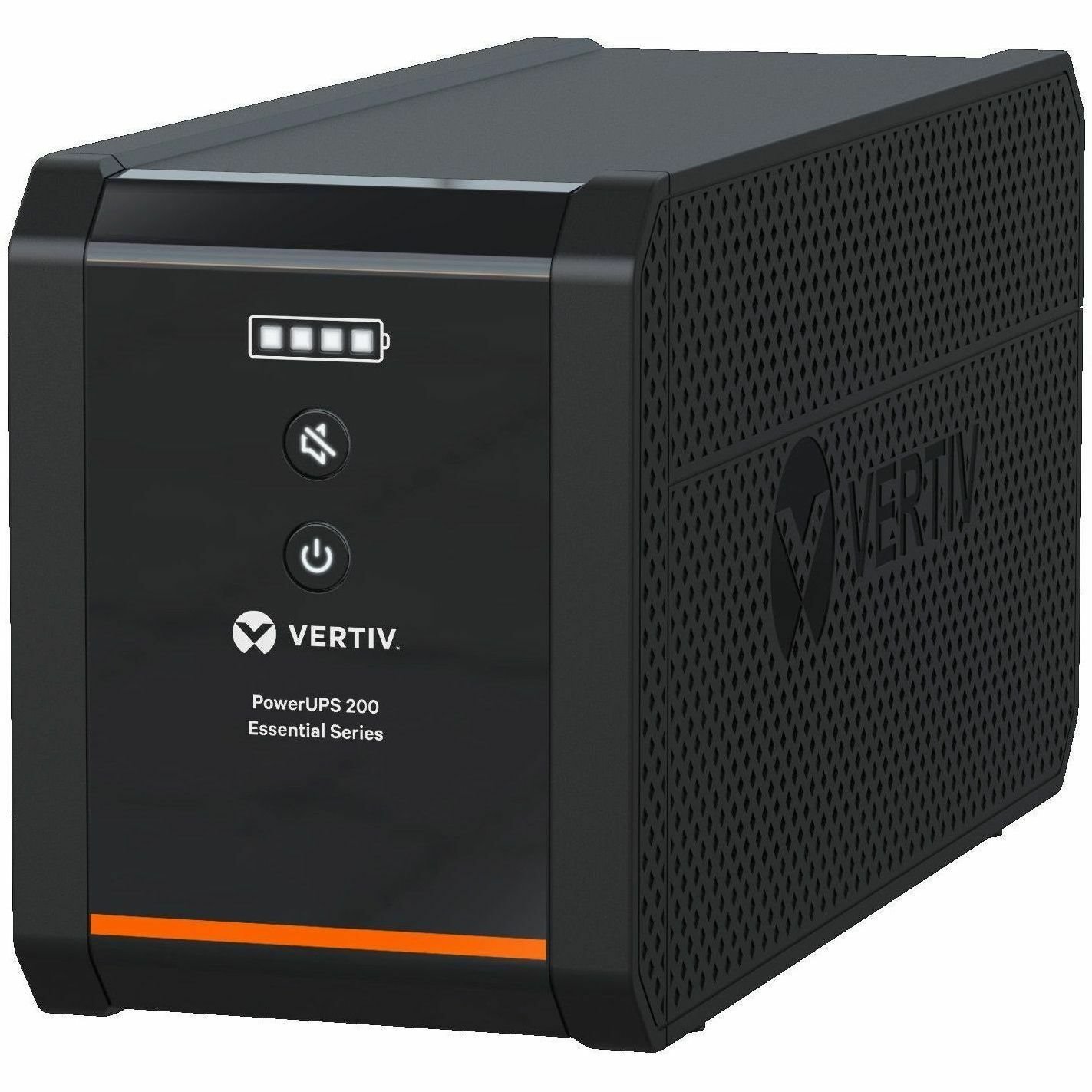

The Vertiv PowerUPS 200 Essential Line Interactive Series PSA6E-1600IT-IEC is an affordable and reliable 230VAC uninterruptible power supply (UPS) battery backup system. With 6 IEC outlets, this UPS offers flexible, basic power protection to multiple devices simultaneously, including computers, wireless networks, retail point-of-sale (POS) equipment, surveillance systems, and more. It has automatic voltage regulation (AVR) which helps to stabilize output power during fluctuations and extend battery life, as well as a two-year warranty for long-term peace of mind. The PowerUPS 200 Essential Series is now more intuitive and user-friendly than ever before with LED lights to easily indicate remaining runtime, user-replaceable batteries, and a dedicated mute button to silence alarms. It also includes Vertiv's free management software, Vertiv Power Assist, which can be used to gracefully shut down connected equipment during an outage to protect it from damage and data loss.
- Warranty
- Limited Warranty
- 2 Year
- Additional Warranty Information
2-year warranty: Full unit coverage, including the battery, with a hassle-free advanced replacement warranty.
- Technical Information
- AVR
- Yes

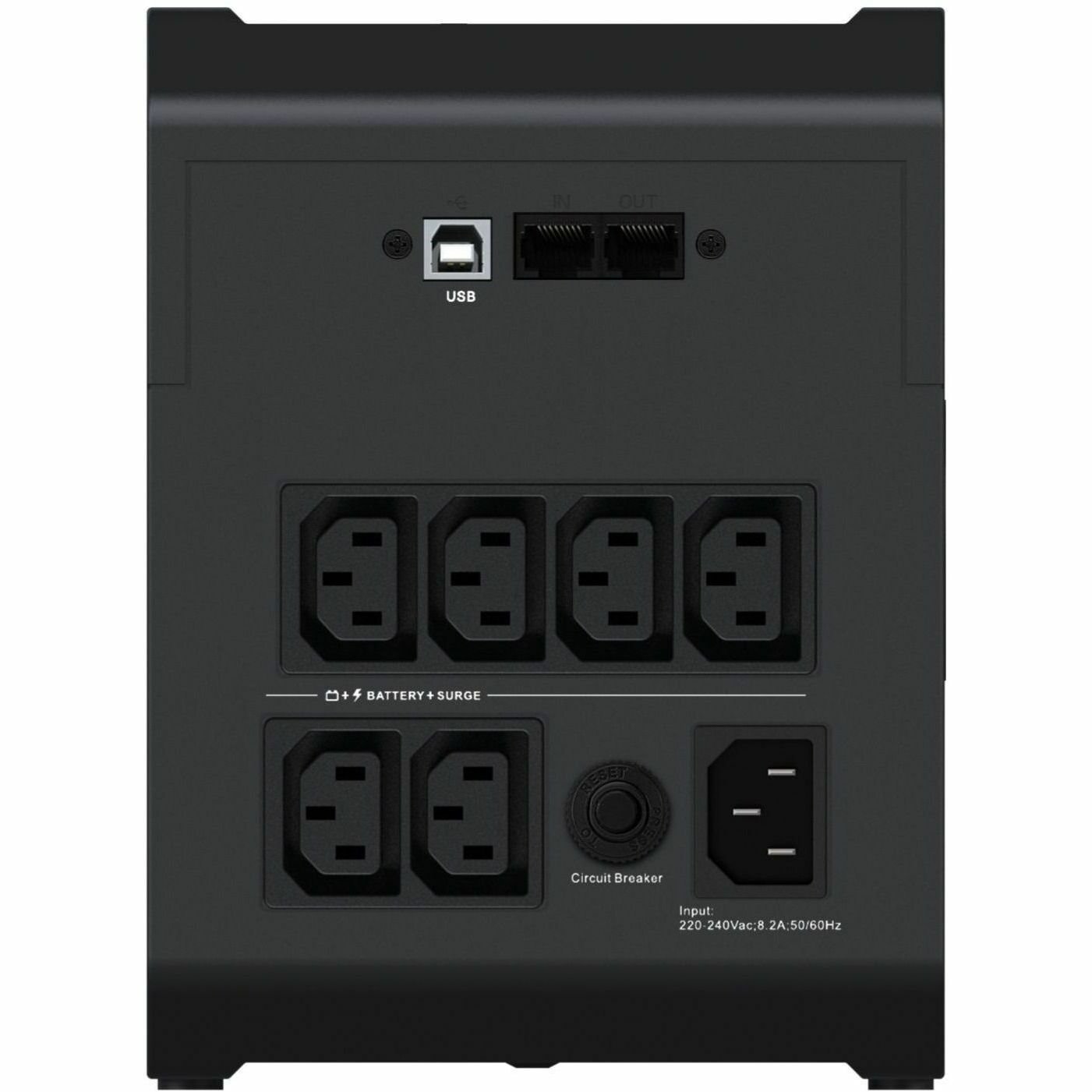

- Plug/Connector Type
- IEC 60320 C20
- Receptacle Type
- IEC
- Receptacle Detail
- 6 x IEC
- Number of Battery & Surge Outlets
- 6
- Cord Length
- 1.83 m
- Transfer Time
- 10 ms
- Phase
- Single Phase
- Efficiency Detail
- 95% (AC Mode)
- Application/Usage
- Computer
- Network
- Retail
- POS
- Surveillance System
- Electronic Device
- Critical System
- Equipment
- Gaming Console
- Workstation
- Personal Electronic
- TV
- Monitor
- Media Player
- Surge Suppression
- Yes
- Power Description
- Load Capacity (VA)
- 1.60 kVA
- Load Capacity (Watt)
- 925 W
- Input Voltage
- 230 V AC
- 120 V AC
- Input Voltage Range
- 220 V AC - 240 V AC
- 140 V AC - 290 V AC
- Output Voltage
- 230 V AC
- Input Frequency
- 50 Hz
- 60 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Waveform Type
- Pulse-width Modulated Sine Wave
- Surge Energy Rating
- 475 J
- Circuit Breaker
- Yes
- Controls/Indicators
- Status Indicators
LED Indicators
- Battery Information
- Battery Characteristics
- Valve-regulated, Sealed
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 2 Minute
- Backup/Run Time (Half Load)
- 10 Minute
- Replaceable Battery
- Yes
- Environmental Conditions
- Minimum Operating Temperature
- 0°C
- Maximum Operating Temperature
- 40°C
- Storage Temperature
- -20°C - 40°C
- Maximum Operating Elevation
- 3.05 km
- Maximum Storage Elevation
- 3.05 km
- Physical Characteristics
- Height
- 195.1 mm
- Width
- 145 mm
- Depth
- 400.1 mm
- Form Factor
- Tower
- Weight (Approximate)
- 12.52 kg
- Miscellaneous
- Certifications & Standards
- CB
- CE
- EN/IEC 62040-1
- UKCA
- RCM
- EAC
- EN/IEC 62040-2
- EN/IEC 61000-3-2
- EN 61000-3-3
- CAT: C1
- IEC 61000-4-5
- ISTA Procedure 3A
- Software Included
- Vertiv Power Assist
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
