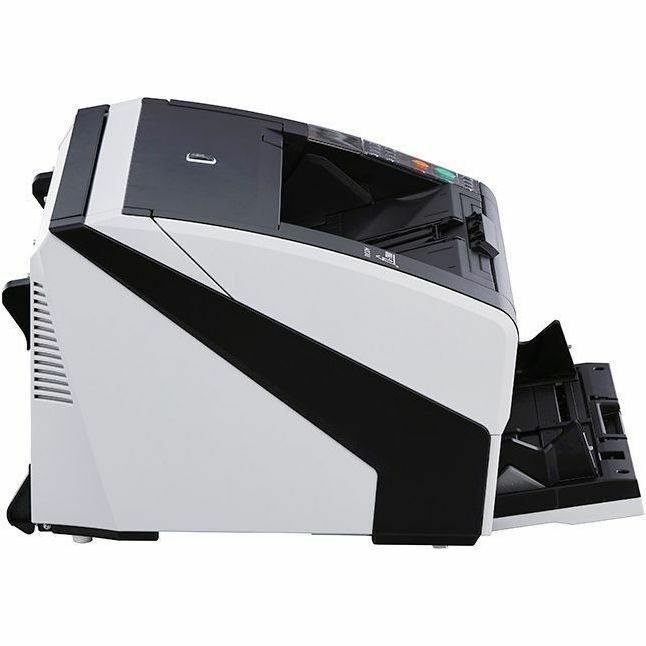

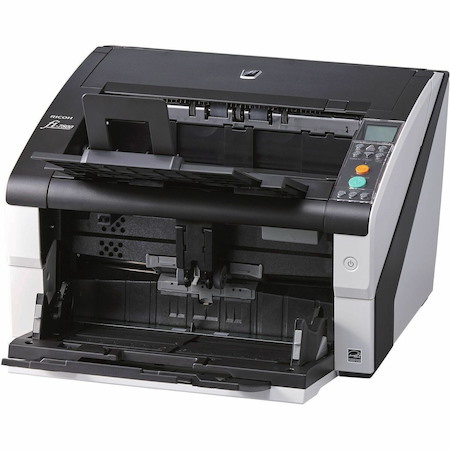

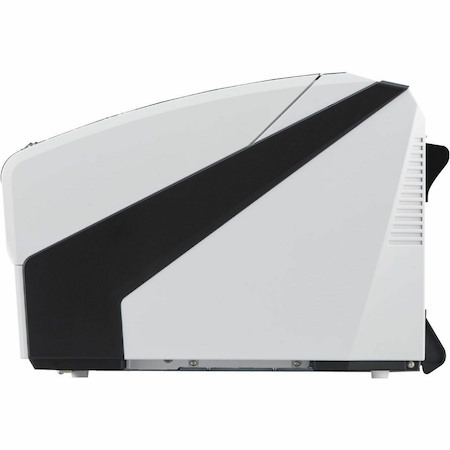

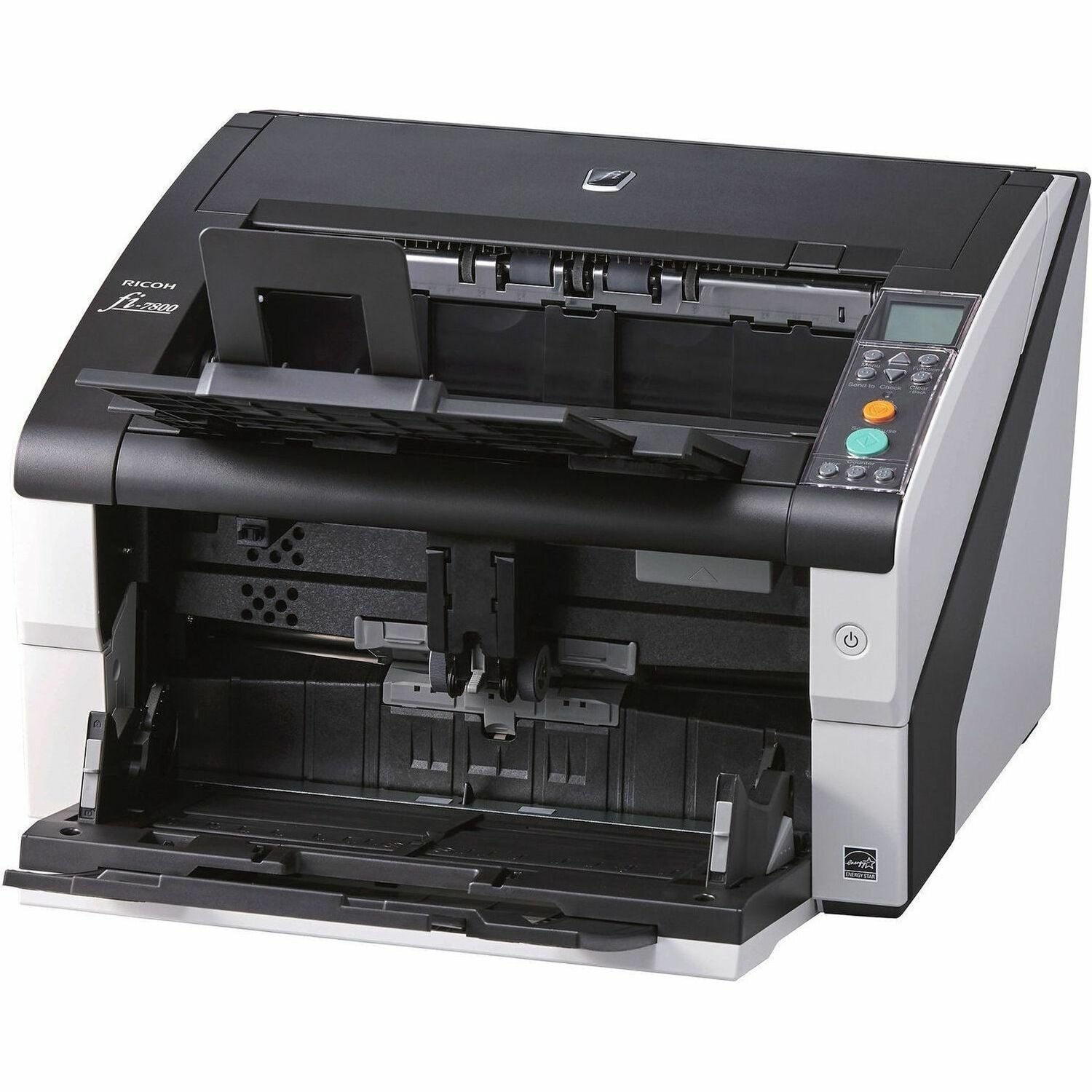

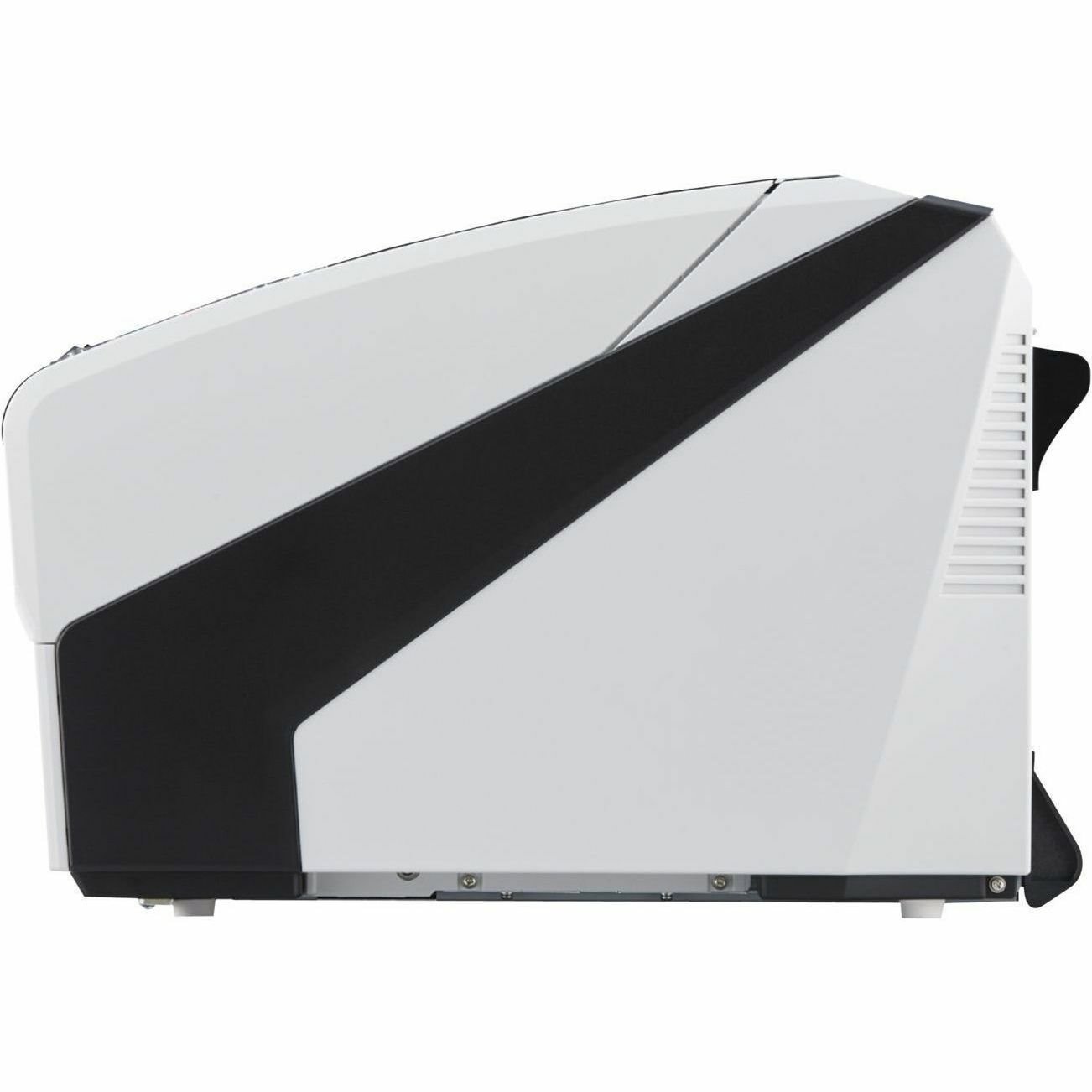

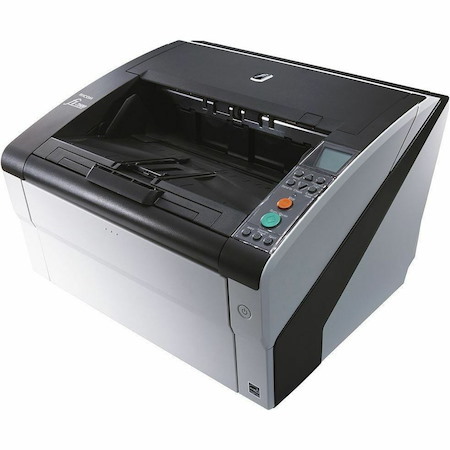

The scanner is designed with operator usability as its first priority. It provides high quality technology for reliable scanning, a user-friendly design inherited from our high-end scanners, as well as enhanced image processing functions. Users can enjoy comfortable scanning while improving their work efficiency significantly.
- Automatic Separation Control function and Skew Reducer to ensure stable feeding
- Paper Protect function to prevent documents from being damaged
- Stacking Control function and Elevator Stacker for easy paper collection from the stacker
- Manual Feed Mode to scan various types of documents
- Environment-friendly product certified with ENERGY STAR Version 3
- Low profile design with operation panel and LCD for comfortable scanning
- Cleaning Mode for easy maintenance
- LAN network capability certified for Silex Device Server users
- Comes withPaperStream IPandPaperStream Captureproviding advanced image processing functions
- PaperStream ClickScanalso available for ad-hoc use to scan in 3 simple steps
- PaperStream Capture Prosoftware available as a premium option
- General Information
- Manufacturer
- Ricoh Imaging Company, Ltd.
- Manufacturer Website Address
- http://www.ricoh.co.uk
- Brand Name
- Ricoh
- Product Line
- ImageScanner
- Product Series
- fi
- Product Type
- ADF/Manual Feed Scanner
- Technical Information
- Optical Resolution (dpi)
- 600
- Scan Color
- Colour
- Monochrome
- Greyscale
- Colour Depth
- 24-bit
- Grayscale Depth
- 8-bit
- Maximum Mono Scan Speed (ppm)
- 110
- Maximum Color Scan Speed (ppm)
- 110
- Maximum Mono Scan Speed (ipm)
- 220
- Maximum Color Scan Speed (ipm)
- 220
- Media Type
- Paper Document
- Plastic Card
- Booklet
- Media Size
- A4 - 210 mm x 297 mm
- - 304.80 mm x 431.80 mm
- - 50.80 mm x 76.20 mm
- Scanning Modes
- Duplex
- ADF Capacity
- 500 Sheets
- Duplex Scanning
- Yes
- Interfaces/Ports
- USB
- Yes
- Software
- Operating System Supported
- Windows 10
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016
- Windows Server 2012 R2
- Windows Server 2012
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Physical Characteristics
- Height
- 309.9 mm
- Width
- 459.7 mm
- Depth
- 429.3 mm
- Weight (Approximate)
- 32 kg
- Miscellaneous
- Energy Star
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
